Polishing Series
HSM-MD250

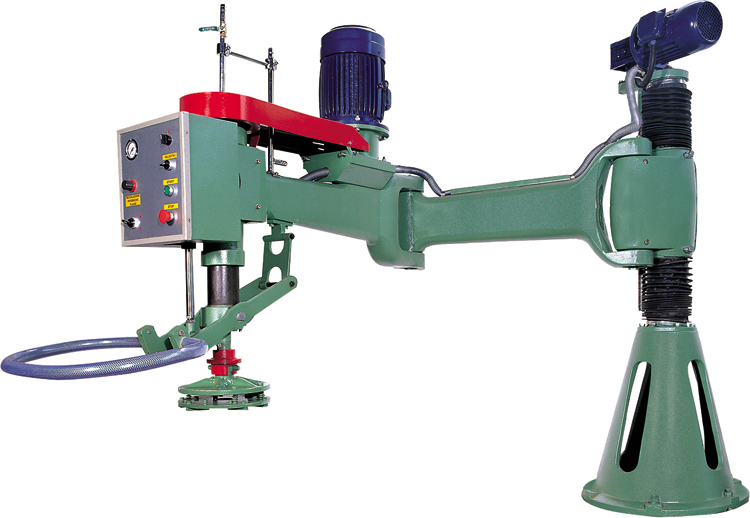

Swing Type Polisher
This machine adopts visual device to lift and pressure by cylinder. Its linking arm can circum-gyrate freely, which gets an easier operation, reduces labor intensity and increases work efficiency. It is available for polishing different shape's materials.
This machine adopts visual device to lift and pressure by cylinder. Its linking arm can circum-gyrate freely, which gets an easier operation, reduces labor intensity and increases work efficiency. It is available for polishing different shape's materials.
TECHNICAL PARAMETERS
Diameter of polishing head
ø240mm
Work scope
3200mm*1200mm
Revolving speed of main axis
480r/720r/min
Horizontal:1.5:2000
Allowed height difference of wheel head
Vertical:1:1000
Length of triangle conveyer belt
1850mm(B)
Power of Main Motor
4.0kw/5.5KW 960r/1440r/min
Water consumption
1m3/h
Gross weight
800kg
Machine Dimension(LxWxH)
2400mm*400mm*1800mm
